A research team affiliated with the Laboratory of Polymeric Materials and Biosorbents at the Federal University of São Carlos (UFSCar) in Araras, São Paulo state, Brazil, has produced and is testing cellulose-based materials for enhanced-efficiency fertilizers to improve the supply of nutrients to crops and reduce the release of non-biodegradable chemicals into the ecosystem.
The studies were funded by FAPESP and led by Roselena Faez, a professor at the Center for Agricultural Sciences (CCA-UFSCar). FAPESP – the São Paulo Research Foundation (Fundação de Amparo à Pesquisa do Estado de São Paulo) – is a public foundation, funded by the taxpayer in the State of São Paulo, with the mission to support research projects in higher education and research institutions, in all fields of knowledge.
In an article published in Carbohydrate Polymers, researchers describe how they used modified nanocellulose to discharge the nutrients contained in fertilizer into the soil slowly and in a controlled manner, given that nitrogen, phosphorus and potassium are highly soluble.
Controlled-release products are available on the market, but most are made of synthetic polymers, which are non-biodegradable. The researchers at UFSCar developed an entirely different product in which the chemical reaction between the modified nanocellulose and mineral salts keeps the nutrients in the soil. “We focused on the worst problems, which are nitrate and potassium. The material we developed is totally biodegradable and releases these nutrients at about the same slow rate as the available synthetic materials,” Faez said.
The nanocellulose was obtained from pure cellulose donated by a paper factory. The nanofibrils were functionalized with positive and negative charges to enhance polymer-nutrient interaction. “Because the salts are also made up of positively or negatively charged particles and highly soluble, we hypothesized that negatively charged nanocellulose would react with positive ions in the salts, while positively charged nanocellulose would interact with negative ions, reducing the solubility of the salts. This proved to be the case, and the group succeeded in modulating nutrient release in accordance with the type of particle in the material,” noted Débora França, first author of the study.
The group fabricated the product in the form of tablets and evaluated its performance in terms of nutrient release into the soil. Evaluation of release into water is the usual method, and water is a very different system from soil. This part of the research was conducted in partnership with Claudinei Fonseca Souza, a professor at CCA-UFSCar’s Department of Natural Resources and Environmental Protection in Araras.
“We evaluated nutrient release into the soil and biodegradation of the material at the site for 100 days. But we deliberately used very poor soil with little organic matter, because this enables us to see the physical effects of release more easily,” Faez said.
The researchers used two techniques to obtain tablets: atomization and spray drying to encapsulate the nutrients with the nanocellulose, followed by heat processing of the resulting powder, which was pressed in a mold. This work was completed with the help of colleagues at the Cellulose and Wood Materials Laboratory belonging to EMPA (Swiss Federal Laboratories for Materials Science and Technology) and in collaboration with UFSCar’s Water, Soil and Environment Engineering Research Group, led by Souza. França performed the cellulose modifications at EMPA while on an internship there with support from FAPESP.
A second article by the group was published in Industrial Crops and Products, with chemist Lucas Luiz Messa as first author. The goal of the study was to extract cellulose from sugarcane bagasse and modify it with a surface negative charge by phosphorylation (addition of a phosphorus group) to allow controlled release of potassium. In theory, delivery of plant nutrition would be slowed by cellulose phosphorylation, which would create surface anionic charges that would bind to macronutrient and micronutrient cations.
The group prepared three types of structure with the phosphorylated cellulose: oven-dried paper-like film; spray-dried powder; and freeze-dried porous bulk similar to polystyrene foam. Freeze drying, or lyophilization, was seen to leave nutrients in the voids left by water removal.
“Technologically speaking, the paper-like structure was the best material we produced for controlled delivery of nutrients. Several products can be created using this paper,” Faez said. The group was able to develop small propagation pots for seedling cultivation. When this material degrades, the phosphorus it contains is released.
Biodegradable propagation pots are already available on the market. “But our product has built-in fertilizer, which is a major competitive advantage. Indeed, we’ve filed a patent application,” noted Faez. The pot is about to be trialed by a flower producer in Holambra, São Paulo state.

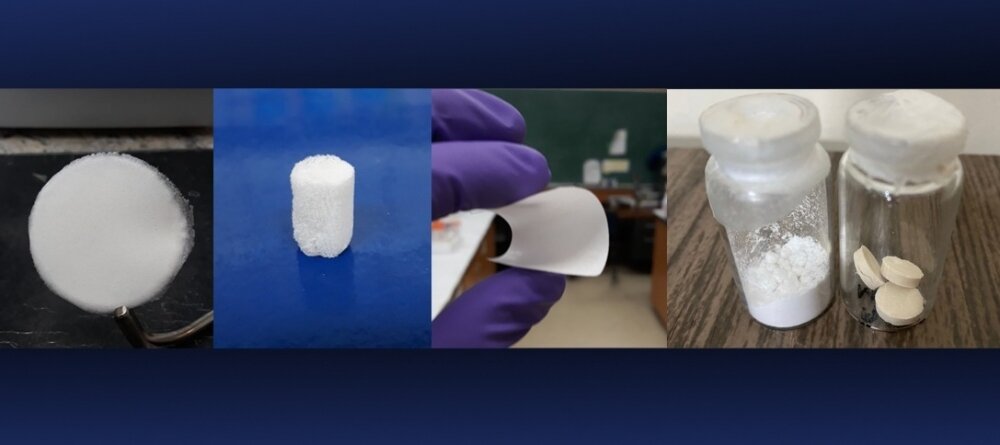

Photo: The first and third photos show the paper made from phosphorylated sugarcane cellulose. The second shows the 3D structure of the material comprising cellulose and nutrient. The fourth shows the microparticles in powder form and after molding into tablets. (Lucas Luiz Messa/Débora França)
